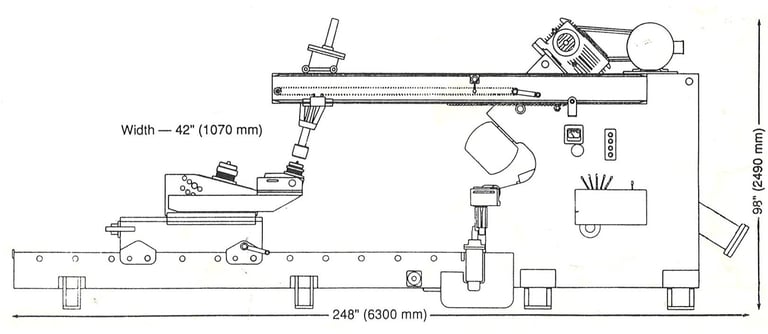

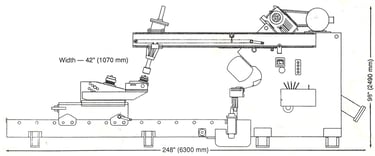

#9 Flanging Machine

Specifications:

As standard equipment, for dished heads with motorized carriage

1" (25 mm) max./14 ga. (2 mm) min. thickness*

18" (5400 mm) max./48" (1200 mm) min. diameter

*Options: 30" (760) mm min. diameter with optional center attachment

2" (50 mm), 3-1/2" (90 mm), 5-3/4 (150mm), 7-1/4" (185 mm), 8" (200 mm), 10" (250 mm) and 12" (300 mm) knuckle radii are the standard upper dished head rolls and must be purchased separately

50 HP drive motor-

5 HP, 20 gal. free-standing hydraulic power unit

Shipping weight—20,000 lbs.

*When using thinner material, it becomes difficult to achieve the larger corner radii and straight flange.

*The largest dished head roll that can be supplied on machine is the standard dished head roll listed on specifications. Non-standard rolls can be supplied and are quoted individually.

*Machine ratings are in mild steel. When stainless steel or high strength alloys are used, machine capacities must be down-rated.

The #9 Flanging Machine is derived from the Blue Valley Flanging Machine design, and provides a simple alternative means of producing a variety of flanged pieces using an operation that has a less-stressful effect on the material than competitive methods. Central to the functionality of the #9 is its interchangeable upper roll, which plays a crucial role in determining the inside radius—also known as the knuckle radius—of the flange being produced.

For more information, please contact us today! We recommend that you specify your requirements and let us help you select the right Hemisphere Flanging Machine for your working needs.
